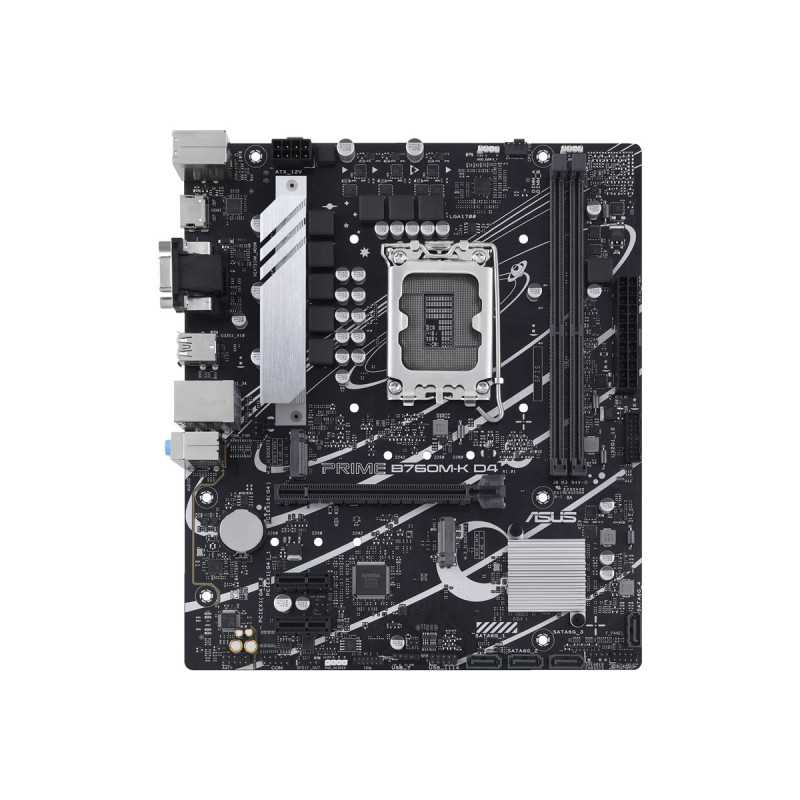

ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0 - 1
search
  • ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0 - 1
€113.39
Tax excluded
ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
New

redeem
By buying this product you can collect up to 22 loyalty points . Your cart will contain total 22 points that can be converted into a voucher of €2.25 .


help_outlineAsk about product
ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0

ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0

ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0.
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

I accept privacy policy rules

  • All-around energy efficiency
    The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
  • Precise digital power control
    The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
  • VRM heatsink and thermal pad
    VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
  • ProCool connector
    Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
  • DDR4 support
    Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
  • Two M.2 slots (up to 64 Gbps)
    The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
  • PCIe 4.0 slot
    The PRIME B760 motherboard is designed specifically for 13th and 12th Gen Intel CPUs and offer PCIe 4.0 connectivity for the GPUs.
  • Realtek 2.5 Gb Ethernet
    Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
Продукт:
Име на продукта:ASUS PRIME B760M-K D4 LGA1700 microATX MB 2xDDR4 4xSATA 2xM.2 1xD-Sub 1xHDMI 2.0
Описание :ASUS PRIME B760M-K D4 - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
EAN:4711387006917
Гаранция на производител :36 Months Bring-In Warranty
 General
Product Type:Motherboard - micro ATX
Chipset Type:Intel B760
Processor Socket:LGA1700 Socket
Max Processors Qty:1
Compatible Processors:(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
 Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2600 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
 Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
 LAN
Network Interfaces:2.5 Gigabit Ethernet
 Expansion / Connectivity
Expansion Slots:1 x CPU
2 x DIMM 288-pin
1 x PCIe 4.0 x16
2 x PCIe 4.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2
RAID Features:Intel Rapid Storage Technology
Interfaces:1 x HDMI
1 x VGA
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x PS/2 keyboard / mouse
1 x LAN (2.5Gigabit Ethernet)
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces:3 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x serial - header
1 x SPI - header
1 x SPDIF out - header
1 x speaker - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
 Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, RGB Lighting, Q-LED Core, VRM heatsink design
 Miscellaneous
Included Accessories:IO shield, 2 x M.2 anchors
Cables Included:2 x Serial ATA cable
Software Included:ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert
Width:24.4 cm
Depth:21.1 cm

Техническите данни ни се предоставят от трети страни за информационни цели. Ние не поемаме отговорност за грешки в тези данни.
