Продукт: | |

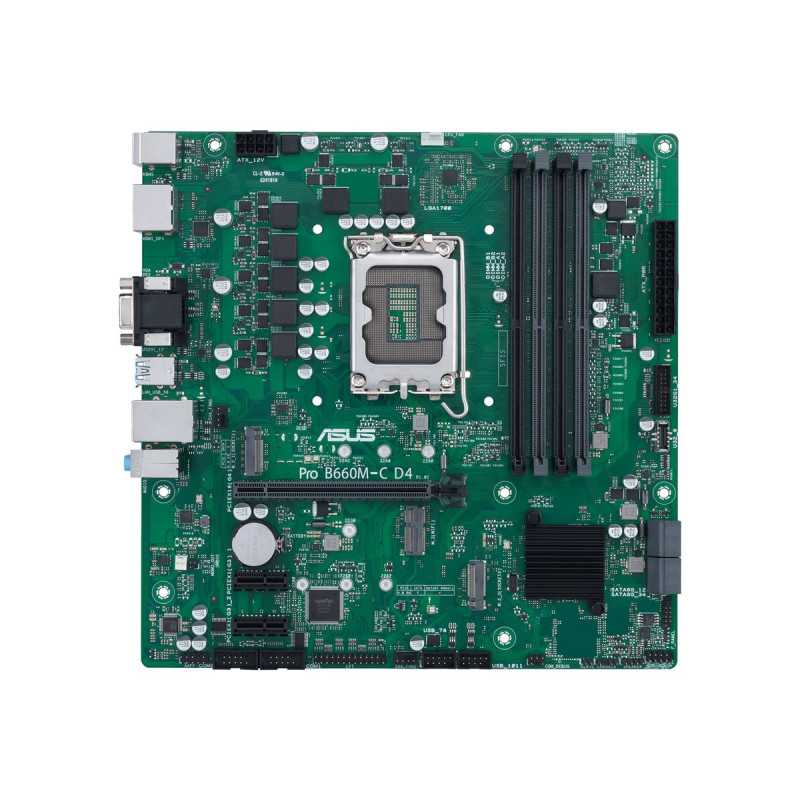

Име на продукта: | ASUS PRO B660M-C D4-CSM LGA1700 4xDIMM DDR4 TPM 4xSATA 2xM.2 1xHDMI 1xVGA 2xDP MB |
Описание : | ASUS PRO B660M-C D4-CSM - Motherboard - micro ATX - LGA1700 Socket - B660 Chipset - USB-C Gen1, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel) - ASUS Corporate Stable Model (CSM) |
EAN: | |
Гаранция на производител : | 36 Months Bring-In Warranty |
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel B660 |
Processor Socket: | LGA1700 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x HDMI 2 x DisplayPort 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 mouse |
Internal Interfaces: | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 2 x serial - header 1 x speaker - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features | |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS EZ DIY, audio jack detect technology, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, ASUS OptiMem, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS Control Center Express (ACC Express), Q-LED Core |
Miscellaneous | |
Included Accessories: | 2 x M.2 screws, IO shield, ACC Express Activation Key Card |
Cables Included: | 2 x Serial ATA cable |
Compliant Standards: | VCCI Class B ITE, JATE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
Width: | 24.4 cm |
Depth: | 24.4 cm |
Package Details: | Box |
Pricing Type: | ASUS Corporate Stable Model (CSM) |
