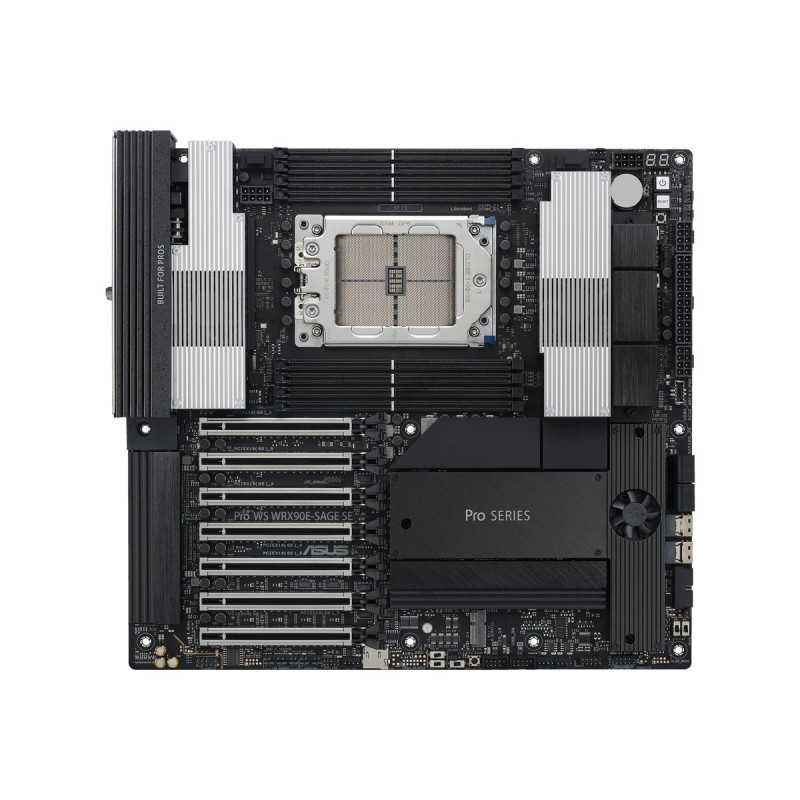

ASUS Pro WS WRX90E-SAGE SE Motherboard
€1,483.12
Tax excluded
ASUS Pro WS WRX90E-SAGE SE Motherboard.
The AMD sTR5 EEB workstation motherboard features 7 PCIe 5.0 x16 slots, with support for multi-GPU. It has a robust power-stage design of 32+3+3+3, making it ready for CPU and memory overclocking. The motherboard also offers 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, and a PCIe Q-Release slim.
New
| |
| Продукт: | |
| Име на продукта: | ASUS Pro WS WRX90E-SAGE SE Motherboard |
| Описание : | ASUS PRO WS WRX90E-SAGE SE - Motherboard - SSI EEB AST2600 - Socket sTR5 - AMD WRX90 Chipset - USB 3.2 Gen 1, USB4, USB-C 3.2 Gen 2x2 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (6-channel) |
| EAN: | 4711387441145 |
| Гаранция на производител : | 36 Months Bring-In Warranty |
| General | |
| Product Type: | Motherboard - SSI EEB |
| Processor: | AST2600 |
| Chipset Type: | AMD WRX90 |
| Processor Socket: | Socket sTR5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Supported RAM | |
| Technology: | DDR5 |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | Quad channel memory architecture |
| Audio | |
| Type: | HD Audio (6-channel) |
| Audio Codec: | Realtek ALC1220P |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 8 x DIMM 288-pin 6 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 4 x M.2 PCIe 4.0 -connectors: 2 x SlimSAS |
| Interfaces: | 1 x VGA 2 x Mini DisplayPort 6 x USB 3.2 Gen 2 2 x USB4 1 x USB 2.0 2 x LAN (10Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector |
| Features | |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Q-Code, Clear CMOS Button, ASUS Stainless Steel Back I/O, overcurrent protection, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, ASUS ProCool II, M.2 Q-Latch, PCIe Slot Q-Release, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, steel backplate, M.2 heatsink backplate, Q-Connector, 32+3+3+3 Phase Power Design |
| Miscellaneous | |
| Included Accessories: | Thermistor cable, Q-Connector, M.2 Q-Latch, M.2 Key E screw package, AMI licence sticker, 4 x M.2 rubber package |
| Cables Included: | 4 x Serial ATA cable 2x 8-pin PCIe to single 8-pin CPU convertor 1 x 24-pin power cable (Y-cable) 2 x Mini DisplayPort cable |
| Software Included: | ASUS CPU-Z, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial) |
| Width: | 30.5 cm |
| Depth: | 33 cm |
47081618
New
Comments (0)
No customer reviews for the moment.
ASUS Pro WS WRX90E-SAGE SE Motherboard.
The AMD sTR5 EEB workstation motherboard features 7 PCIe 5.0 x16 slots, with support for multi-GPU. It has a robust power-stage design of 32+3+3+3, making it ready for CPU and memory overclocking. The motherboard also offers 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, and a PCIe Q-Release slim.
