- Overall energy efficiency
The Power Saving function contains several settings that make it easy to optimize energy consumption and maximize savings. You can activate a CPU power limit, dim the Aura lighting and set the fan profile to an energy-saving mode. You can also activate Microsoft Windows' built-in energy-saving plan. - UEFI BIOS
The ASUS UEFI BIOS offers everything you need to configure and adjust your system settings. It also offers simplified options for PC assembly novices and advanced features for experienced overclockers. - DrMOS power supply phases
12+1 power phases combine high-side and low-side MOSFETs and drivers in a single package to deliver power, efficiency and stable performance to all compatible Intel processors. - Six-layer printed circuit board
The multi-layer PCB quickly dissipates heat around the voltage regulator to improve overall system stability, while giving the processor more room for overclocking. - 8+4-pin ProCool power connectors
Compared to most power inputs, ProCool connectors overcome placement constraints to ensure ideal contact between different power cables. This technique reduces impedance to prevent the appearance of any sensitive zones or connector failures. - TUF coils
Military-grade TUF coils provide your CPU with powerful energy to enhance system stability. - TUF capacitors
TUF 5K black metal capacitors offer 52% higher temperature tolerance and 2.5 times longer life than standard motherboard capacitors. - VRM Digi+
The Digi+ voltage regulator (VRM), one of the finest in the industry, is optimized to ensure smooth, stable power supply to the processor. - Free DDR5 via AEMP II
ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on the ability of a CPU and memory module to drive your kit's memory chips, and features an optimized clock speed for effortless performance release. Thanks to a flexible learning method, AEMP II not only makes it possible to tune memory beyond the basic parameters, but also to maintain system stability, whether making the most of an entry-level module or priming a high-speed kit for ultimate performance. - PCIe 4.0 compatible
The three PCIe 4.0 M.2 slots support up to one 22110 device, and data transfer speeds of up to 64 Gb/s via PCIe 4.0, enabling faster start-up and application loading times with operating system or application drives. - Ideal design for cooling
The TUF GAMING B760-PLUS WIFI is equipped with an enlarged VRM heatsink, while the three M.2 slots and the PCH feature heatsinks that offer a perfect balance between mass and surface area for heat dissipation. - Connectivity
The TUF GAMING B760-PLUS WIFI reaches new heights in performance potential thanks to PCI Express, while the arsenal of USB ports includes two Type-C and Thunderbolt 4 connections to further extend compatibility and bandwidth. - SafeSlot Core+ and SafeDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to hold the card firmly in place. As PCIe 5.0 is twice as fast as PCIe 4.0, ASUS has improved SMT manufacturing processes for the faster SafeSlot Core+, to guarantee users the highest possible data rates. What's more, the ASUS SafeDIMM sleeve is added to support and protect memory modules, allowing you to insert modules with speed, precision and confidence. - ESD Guards
ASUS ESD Guards prevent electrostatic discharges from damaging the circuit. The circuit can withstand air discharges of up to +/- 10 kV and up to +/- 6 kV in direct contact (far exceeding market standards of +/- 6 kV and +/- 4 kV). Surface-mounted Transil diodes (TVS) in a double in-line housing help protect your PC from voltage spikes. - TUF LANGuard
The military-grade innovation TUF LANGuard integrates signal coupling technology and surface-mounted capacitors to improve throughput and protect the board from lightning and electrostatic discharge. - Stainless steel I/O panel
The stainless-steel I/O interface on TUF GAMING motherboards is coated with chromium oxide, providing a service life three times longer than conventional interfaces. TUF Gaming motherboards passed the 72-hour salt spray test, while components from other brands lasted just 24 hours. - M.2 Q-Latch
The innovative Q-Latch system makes it easy to install or replace an M.2 SSD without the use of tools. In fact, this design uses a simple locking mechanism to secure your drive, eliminating the need for screws. - Removable captive screws
Specialized screws for M.2 slots reduce the risk of dropping or losing a screw somewhere in your case when removing the M.2 heatsink. - Q-LED
Integrated Q-LED troubleshooting lights quickly tell PC assemblers whether key components such as CPU, RAM, graphics card and storage devices are functioning normally during start-up. - Wi-Fi 6
Compatible with the 802.11ax standard, the Intel Wi-Fi 6 module increases maximum bandwidth to achieve phenomenal connection speeds of up to 2.4 Gb/s. More importantly for users requiring colossal power, the module is optimized for more efficient operation on congested networks with heavy traffic. - 2.5 Gb Ethernet connection
On-board 2.5 Gb Ethernet takes your LAN connection up a notch with 2.5 times the bandwidth. Using your usual LAN cable, connect to the Ethernet and take advantage of this network optimization for a smoother, lag-free gaming experience, high-resolution video and faster file transfers. - Realtek 7.1 surround sound
The exclusive codec on TUF GAMING B760 motherboards has been designed in collaboration with Realtek. It boasts a signal-to-noise ratio of 98 dB at stereo output, for perfect audio quality. - DTS sound processing
DTS sound processing enhances the audio experience of gaming headsets and speakers by reducing distortion and providing deeper bass, so games, movies and music sound better. You can also customize your audio settings. - Outshine your opponents
The ultimate PC deserves a look to match. The TUF GAMING B760 series features perimeter lighting to enhance its rugged appearance, while ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. All this can be synchronized with a growing number of Aura Sync-compatible ASUS devices. - RGB Gen 2 addressable connector
Three addressable RGB Gen 2 connectors support up to 500 LEDs on RGB Gen 2 devices, enabling Aura Sync to automatically customize lighting effects across your entire system. The new headers also offer full backward compatibility with existing Aura Sync equipment.
|
| Продукт: |

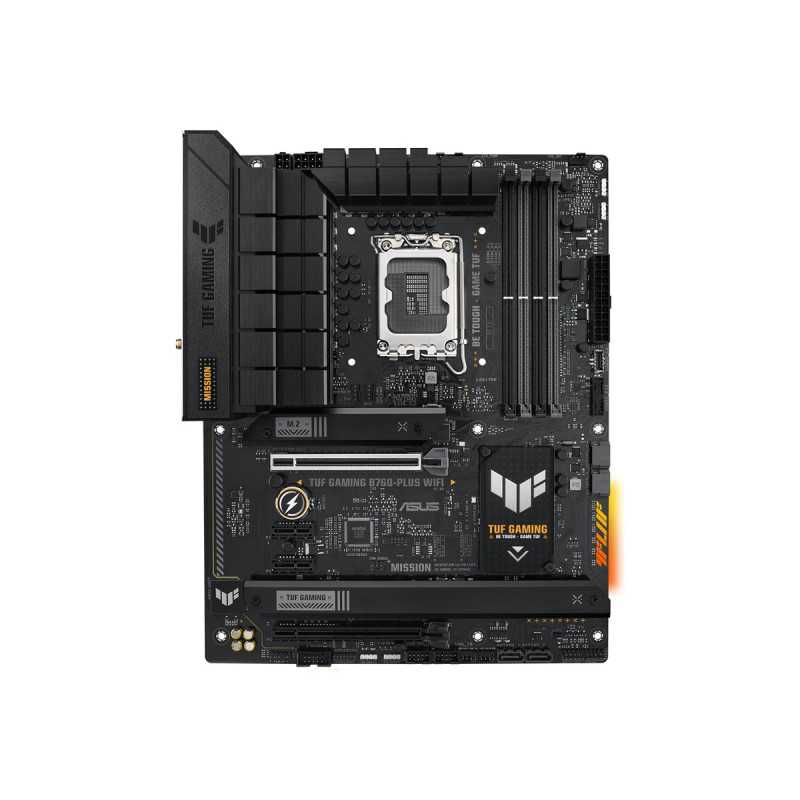

| Име на продукта: | ASUS TUF GAMING B760-PLUS WIFI LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 2.1 1xDP 1.4 3xM.2 |
| Описание : | ASUS TUF GAMING B760-PLUS WIFI - Motherboard - ATX - LGA1700 Socket - B760 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| EAN: | 4711387095119 |
| Гаранция на производител : | 36 Months Bring-In Warranty |
| General |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM |
| Max Size: | 192 GB |
| Bus Clock: | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | Digital Theater Systems (DTS), High Definition Audio |
| LAN |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity |
| Expansion Slots: | 1 x CPU
4 x DIMM 288-pin
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
1 x PCIe 5.0 x16 |
| Storage Interfaces: | PCIe 4.0 -connectors: 3 x M.2
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x DisplayPort
1 x HDMI
1 x USB-C 3.2 Gen2x2
1 x USB 3.2 Gen 2
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
2 x aerial
1 x SPDIF out
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out/headphones - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2 - header
2 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
1 x Thunderbolt - header
1 x serial - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overvoltage protection, AURA RGB Lighting Control, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, CPU Socket lever protector, VRM heatsink design, 12+1 DrMOS power stages, TUF Chokes military-grade, TUF 5K black metallic capacitors |
| Miscellaneous |
| Included Accessories: | ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers, DTS Audio Processing |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
